| High flexible metal hose |

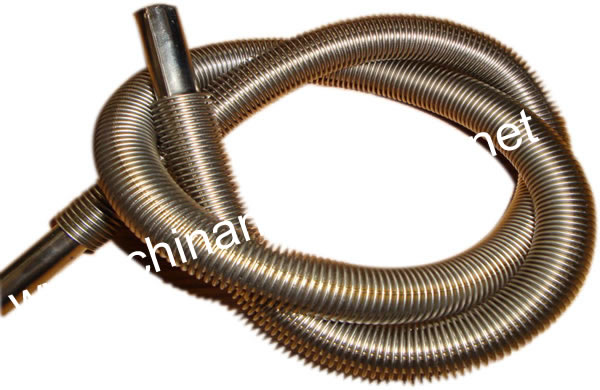

| Compared with standard flexible metal hose, the high flexible metal hose has smaller pitch,thus the hose will be more flexible. This type of hose is designed for light weight and continuous handling and flexing applications.It normally used for vaccum condition and to connect with equipment. |
| High Flexible hoses |
| DN |
Corrugated hoses |
Single Braid |
Double Braid |
| ID |
OD |
Pitch Distance |
Thickness |
Working Press. |
Test Press. |
Working Press. |
Test Press. |
I.D.
(mm) |
Devi.
(mm) |
O.D.
(mm) |
Devi.
(mm) |
I(mm) |
Devi.
(mm) |
S(mm) |
Bar |
Bar |
Bar |
Bar |
| 8 |
7.64 |
±0.10 |
12..3 |
±0.5 |
2.9±0.2 |
±0.2 |
0.2 |
80 |
120 |
140 |
210 |
| 10 |
9.64 |
±0.10 |
14.6 |
±0.5 |
2.8 |
±0.2 |
0.2 |
90 |
135 |
140 |
200 |
| 12 |
11.6 |
±0.10 |
18.6 |
±0.5 |
2.0 |
±0.5 |
0.2 |
80 |
125 |
120 |
180 |
| 15 |
14.4 |
±0.10 |
22.15 |
±0.5 |
2.3 |
±0.5 |
0.28 |
60 |
90 |
100 |
125 |
| 20 |
19.4 |
±0.10 |
27.7 |
±1 |
2.9 |
±1 |
0.28 |
60 |
90 |
80 |
100 |
| 25 |
24.4 |
±0.2 |
33.25 |
±1 |
3.3 |
±1 |
0.28 |
60 |
90 |
80 |
100 |
| 32 |
31.4 |
±0.2 |
40.8 |
±1 |
3.6 |
±1 |
0.28 |
50 |
80 |
70 |
90 |
| 40 |
39.4 |
±0.2 |
51 |
±1 |
3.9 |
±1 |
0.28 |
50 |
80 |
70 |
90 |
| 50 |
49.4 |
±0.2 |
64.3 |
±1 |
4.9 |
±1 |
0.3 |
40 |
70 |
60 |
80 |
| 65 |
64.4 |
±0.2 |
82.6 |
±1.5 |
5.9 |
±1 |
0.4 |
40 |
70 |
60 |
80 |
| 80 |
79.2 |
±0.2 |
99.8 |
±1.5 |
6.8 |
±1.5 |
0.4 |
30 |
60 |
50 |
70 |
| 100 |
99.2 |
±0.5 |
122 |
±1.5 |
8.5 |
±1.5 |
0.4 |
16 |
30 |
30 |
50 |
| 125 |
124 |
±0.5 |
152.5 |
±1.5 |
9.4 |
±1.5 |
0.5 |
16 |
30 |
30 |
50 |
| 150 |
149 |
±0.5 |
183 |
±1.5 |
11.4 |
±2 |
0.5 |
16 |
30 |
30 |
50 |
| 200 |
199 |
±0.5 |
244 |
±2 |
15.6 |
±2 |
0.6 |
16 |
30 |
30 |
50 |
| 250 |
248 |
±0.5 |
305 |
±2 |
18.2 |
±2 |
0.8 |
10 |
20 |
20 |
40 |
| 300 |
298 |
±0.5 |
360.5 |
±2 |
21.8 |
±2 |
0.8 |
8 |
16 |
16 |
30 |
|
| |
|
Download the catalogue in PDF |
|
|
