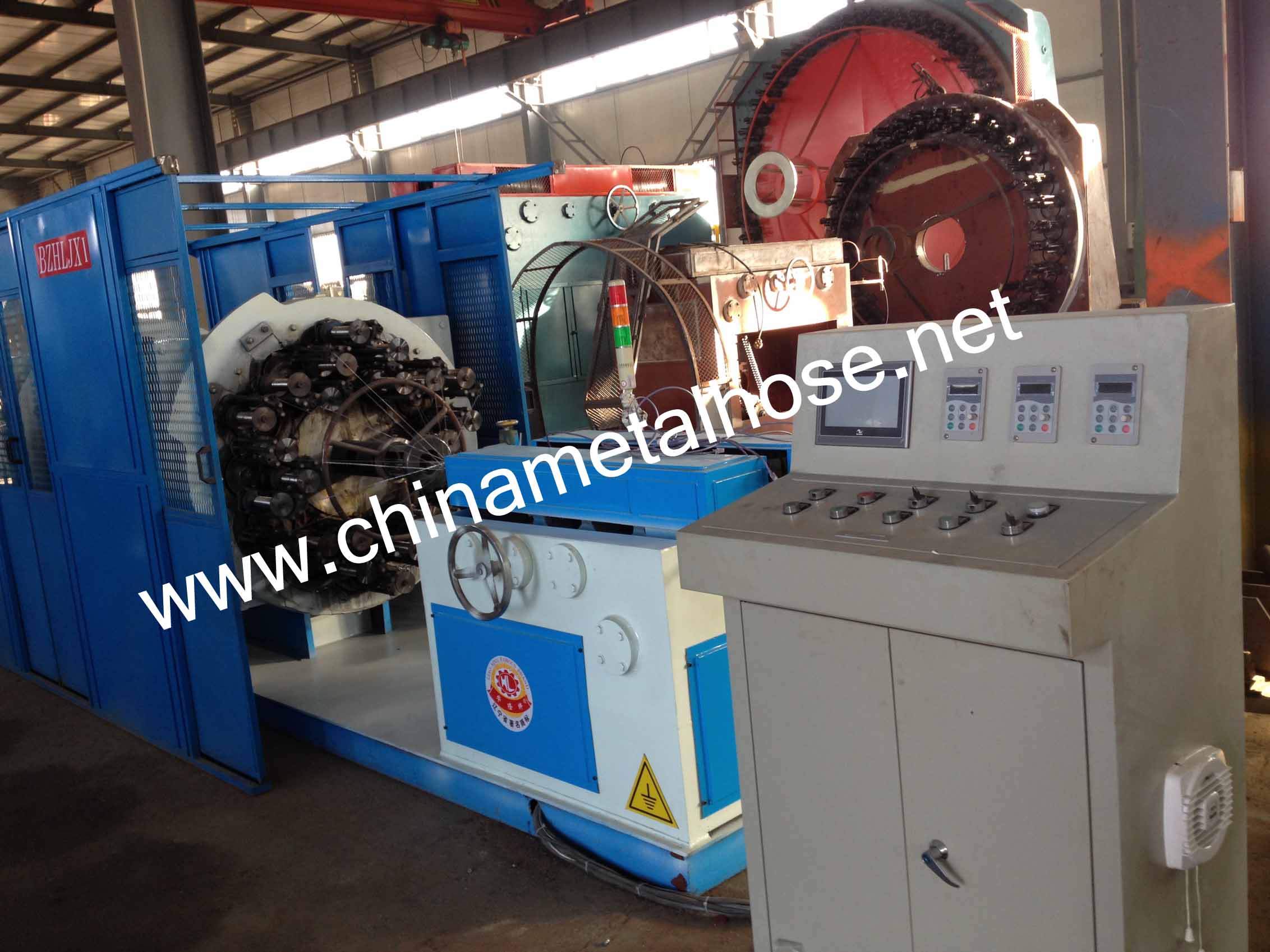

Wire braiding machine

The wire braiding machines we can make as follows:

Wire diameter:0.3mm to 0.8mm

No.of spindles:16 to 112 spindle braiding machine

ID of the braids:4mm to 600mm

Material of wires:stainless steel,galvanized carbon steel, copper wire

*For details please download the catalogue in PDF format.

Wire Braiding Machine
Type No. Braid ID
(mm)
rotation speed of spindle
r/min
braiding angle Pitch(mm) pulling speed
(m/h)
no.of carriers Motor power(KW)
BG-16 4-10 24.8 54°44' 9-22 13-33 16 Y132M1-6  4.0KW
BG-20 6--13 19.8 54°44' 13-29 15-34.5 20 Y132M1-6  4.0KW
BG-24 10--31 14.25 54°44' 22--69 21--66 24 Y132M1-6  4.0KW
BG-36 15--45 10 54°44' 33--100 22--66 36 Y132M1-6  5.5KW
BG-48 30--75 7.25 54°44' 66--166 29--72 20 Y132M1-6  7.5KW
BG-64 51--110 4.56 54°44' 67--240 18.6--102 64 Y160L-6  11KW
BG-72 80--150 4.25 54°44' 170--330 44--83 72 Y160L-6  11KW
BG-96 150--400 2.75 54°44' 240--750 50--120 96 Y160L-6  11KW
wire braids

    Download the catalogue in PDF
please click
