Hose Fittings

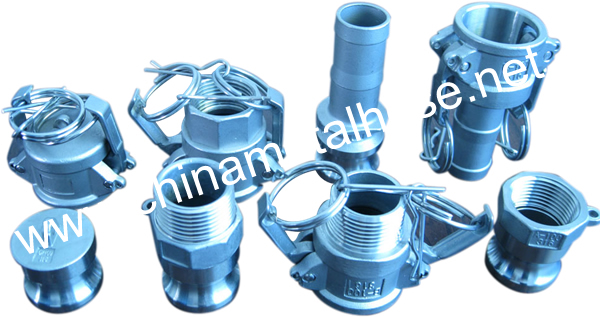

Quick Release & Camlock Couplings

Our quick connecting couplings(camlock coupling) conserve energy and are easy to connect / disconnect without the use of hand tools, for thousands of purposes where products are transfered by pipe or hoses, like Brewing, Chemical, Mining, Fertilizer, Petroleum, Steel Plants, Power Plant and Pneumatic Tools.Especially,we have very special quick release & camlock coupling for liquid gas,such as liquid Amonia, liquid argon,etc..

*Precision Casting Stainless Steel Quick Couplings ,

*Type:A,B,C,D,E,F,DC,DP.

*Basic Design:DIN2828,

*Test design:API598,

*Thread standard:NPT,BSPT,BSP,DIN2999.

*>Material:AISI304,316, aluminium,brass, etc.

*Available Size:1/2”-6”

Type I Paw-shape Camlock Quick Coupling
Sizes	A	B	C
1"	69	84.6	30
1 1/4"	70	85.7	38.4
1 1/2"	75.2	106.3	46.5
2"	87.6	118.5	60
2 1/2"	99.2	143.3	76.5
3"	112.2	164.6	89
4"	127.5	192	111.5
5"	128	226	134

Type II Horn Shape Camlock Quick Coupling
Size	A	B	C	D	H
DN40	38	47	42	185	75
DN50	48	60	45	195	75
DN65	63	75	50	235	80

Type II Horn Shape Camlock Quick Coupling
Size	A	B	C	D	E	H	G
DN40	40	80	100	130	67	93	114
DN50	50	90	125	160	82	113	132
DN65	65	108	145	180	85	115	157

Type II Horn Shape Camlock Quick Coupling
Size	D	L
40	37	14
50	48	14
65	63	14

Download the catalogue in PDF

please click
